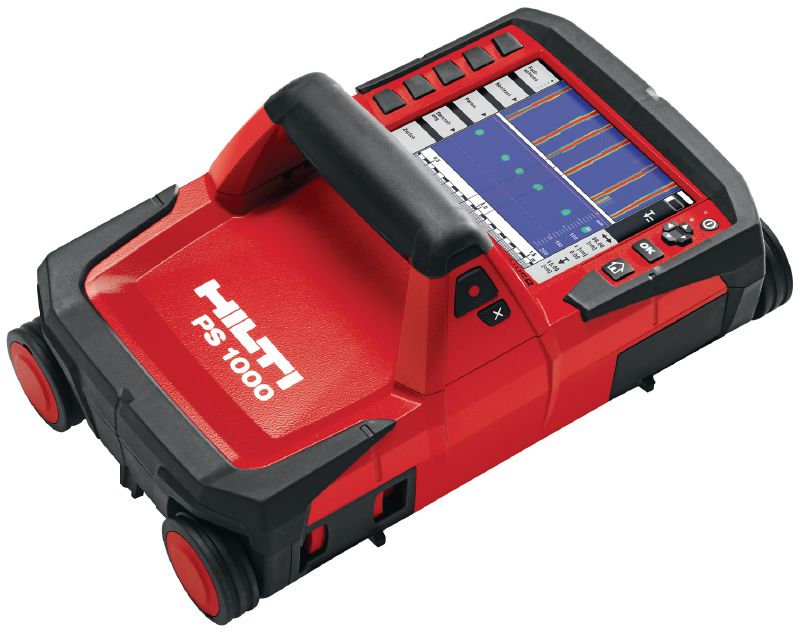

PS 1000 X-Scan Concrete scanner
Efficient concrete scanner for structural analysis and to locate embedded objects in multiple layers
- Max. detection depth for object localization: 300 mm
- Accuracy of depth indication: <100 mm: ±10 mm;>100 mm: ±15 %
- Localisation accuracy: ±10 mm
Customers also searched for detection of holes, detection objects in concrete wall, inspecting floors, detection or construction measuring tools.
Choose options
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 13,171.945
Technical Data
Max. detection depth for object localization
300 mm 1
Accuracy of depth indication
<100 mm: ±10 mm;>100 mm: ±15 % 2
Localisation accuracy
±10 mm 3
Minimum distance between two neighbouring objects
40 mm
Operating temperature range
-10 - 50 °C
Data memory (scanner)
200 scans
Maximum operating time
4 h
Working temperature range
-10 - 50 °C
Weight with batteries
3 kg
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
- Performance and accuracy can be significantly affected by site conditions. See operating instructions.
Documents
Features & Applications
Features
- Provides real-time view of the inside of concrete structures and generates accurate images automatically for direct on-site evaluation
- Three scan modes for specific applications – Quickscan detection, Quickscan recording and Imagescan

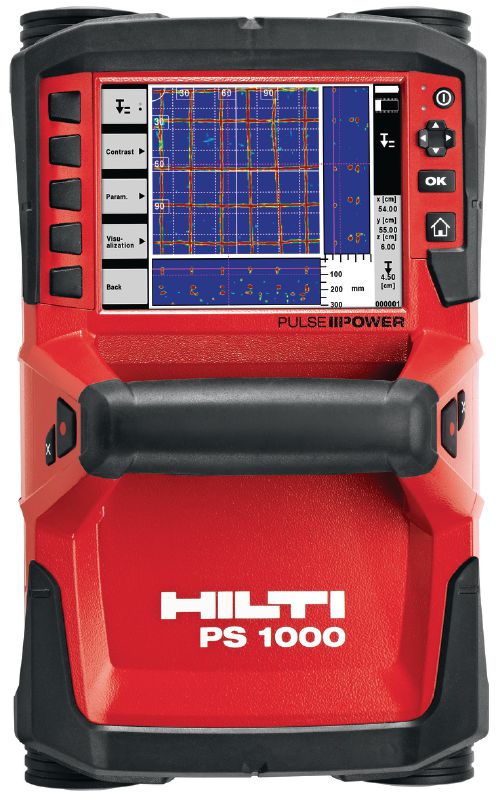

- Displays a top view and cross sections of the scan in 2D and 3D for easy object mapping and multilayer identification
- Compact all-in-one design offers easy operation, plus unmatched data visualisation means hundreds of square metres of concrete can be inspected in a day
- Detailed monitor for in-depth, on-site scan analysis plus PC software for subsequent data evaluation and documentation
Applications

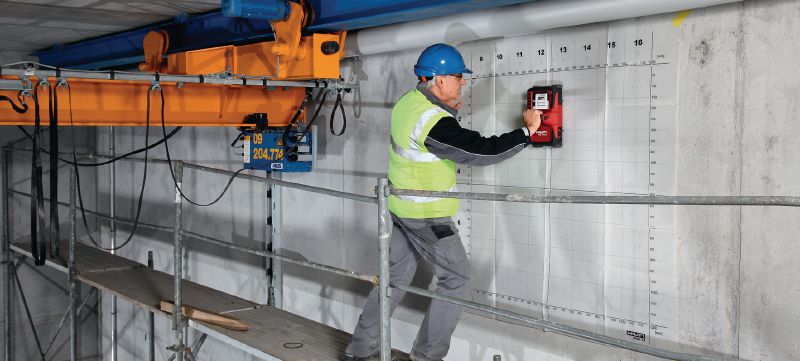

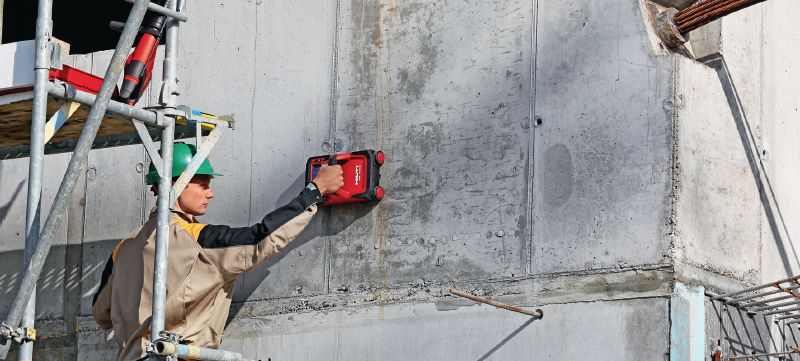

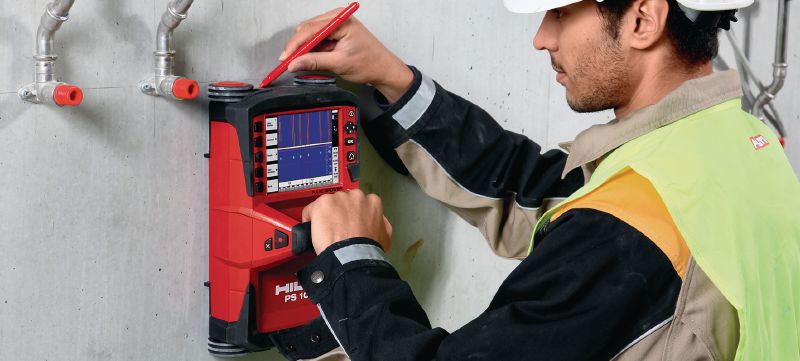

- Locating rebars, tendons, metal and plastic conduits, glass-fibre cables, voids and wood in dry concrete structures at depths of up to 300 mm
- Minimise hitting concealed objects when drilling anchor holes or through holes, breaking out openings and in diamond coring and sawing work
- Rebar extension (post-installed rebar connections) in structural applications

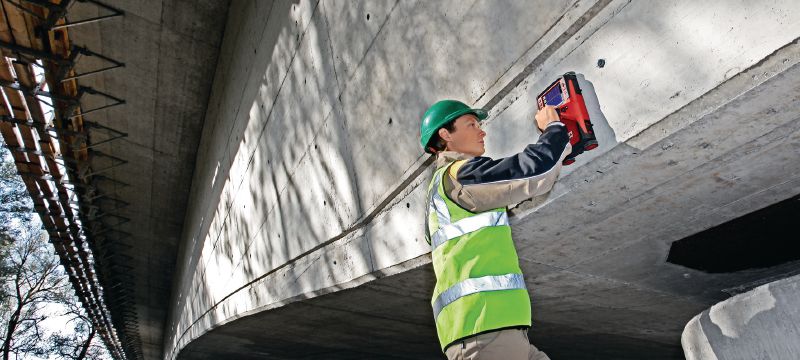

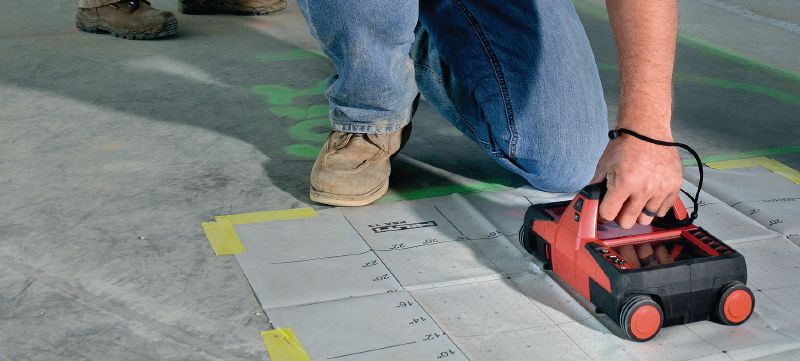

- Inspection of floors, decks, slabs, balconies, etc. in structures such as tunnels, bridges and buildings
- Detection of voids and cavities
For approval or certificate information, please see individual items.
Services
Hilti Tool Service
- 3 or free: get the tool serviced and cleaned in 3 days flat or there is no charge
- Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
- After the no-cost period, repair costs are capped
- Product warranty against parts and manufacturing irregularities for as long as we service the tool
- Product warranty against parts and manufacturing irregularities for 20 years
LifeTime Services
- No repair costs for 2 years from date of purchase, including parts subject to wear and tear, shipping and labour
- After the no-cost period, repair costs are capped for as long as we service the tool
- 3-month no-repair-cost period again after every paid repair
- Materials and workmanship warranty over the entire life of the tool
- Pick-up and delivery service
