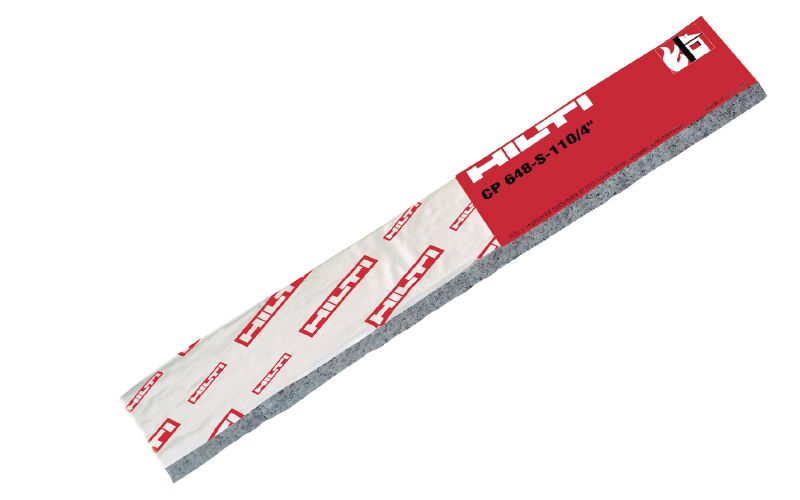

CP 648-S firestop single wrap strips

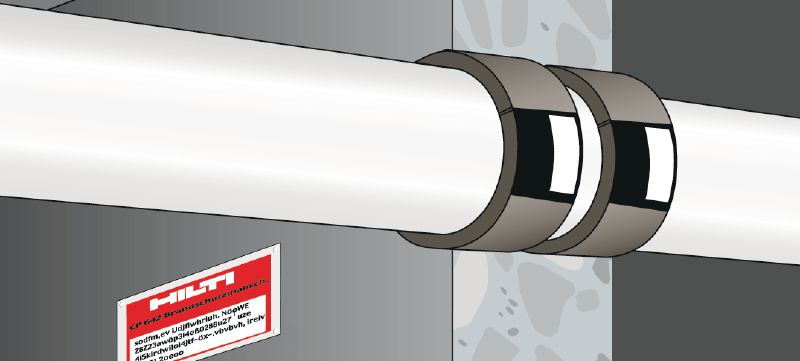

Pre-cut, intumescent, flexible firestop wrap strip to help create a fire and smoke barrier around combustible pipe penetrations
- LEED VOC: 7.6 g/l
- Expansion ratio (unrestricted, up to): 1:19
- Expansion temperature (approx.): 210 °C
ultimate
Customers also searched for fire wrap, single pipe wrap, intuemscant pipe wrap, fire jacket for pipes or through penetration fire sea.
Choose options
Nominal pipe diameter
- 90 mm
- 110 mm
Width
- 45 mm
Length
- 291 mm
- 383 mm
Pack size
- 10 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 28.500
Technical Data
LEED VOC
7.6 g/l
Expansion ratio (unrestricted, up to)
1:19
Expansion temperature (approx.)
210 °C
Product class
Ultimate
Documents
Features & Applications
Features
- Quicker and easier installation – no hooks, anchors or drilling
- Installed inside the base material – ideal when space and access are limited
- Ideal for very tight installations
Applications

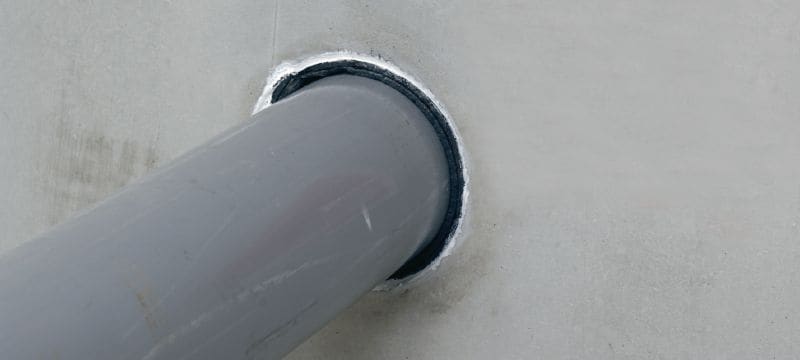

- Easy firestopping where combustible pipes pass through fire-rated walls and floors
- Concrete, masonry and gypsum wall assemblies
For approval or certificate information, please see individual items.
Related Products
Universal fire caulk, providing a flexible firestop seal for fire-rated joints and through penetrations
