S-MD 43 S Self-drilling metal screws

Self-drill screw S-MD43S 5,5x50 #414304

Configurator
Technical Data
Documents
Features & Applications
Related Products
r2971

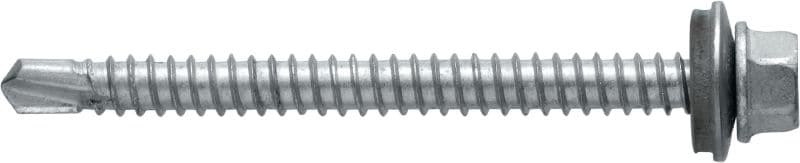

Self-drilling screw (A2 stainless steel) with 14 mm washer for medium-thick metal-to-metal fastenings (up to 6 mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 14 mm
  • Base materials: Carbon steel, Aluminium

Choose options

Thickness fastened range MF
  • 1.2 - 32 mm
Length
  • 50 mm
Pack size
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
250
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
OMR 0.526
OMR 0.530 / 1 each

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
14 mm
Base materials
Carbon steel, Aluminium
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Screw diameter d
5.5 mm
Length
50 mm
Screw head diameter
10 mm
Washer type
Bonded EPDM

Documents

Approval document
Certificate
Reference document
Technical information
Sustainability Documentation
pdf DIBt Zulassung Z-14.4-769 für Fassadenschrauben S-MD, S-AD, S-MP, S-PD und S-PS, German, English [ 13.3 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, German [ 4.4 MB ]
pdf ETA-18/0880_for_SM_screws_2024-04-11_en, English [ 4.4 MB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfect Sealing (PS) feature – specially engineered geometry below the head which prevents over-compression of the EPDM washer, helping to reliably seal out water
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • For reliable fastenings with defined load values
  • Attractive final appearance – screw head can be coloured to match the façade

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Stainless steel (A2) for fastening in mildly corrosive environments
  • Thin to medium-thick metal-to-metal connections (up to 6 mm)
  • Watertight fastenings – 14 mm washer included
  • Fastening aluminium to aluminium substructures and fastening corrugated metal sheets to liner trays
