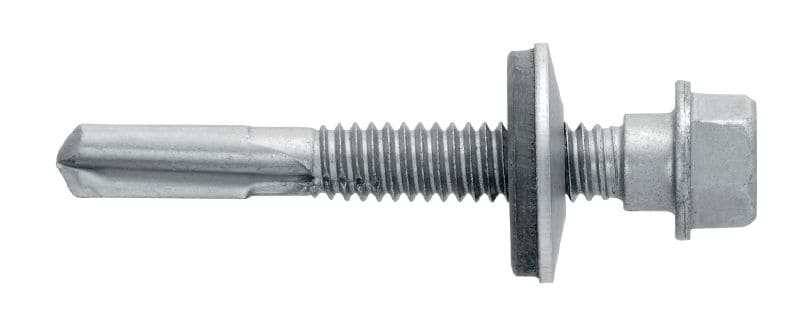

S-MD 55 Z Self-drilling metal screws

L042186.tif

Self-drilling screw (zinc-plated carbon steel) with 16 mm washer for thick metal-to-metal fastenings (up to 15mm)

  • Screw drive/recess type: Hexagon 8
  • Washer size: 16 mm
  • Base materials: Carbon steel
premium

Customers also searched for metal screws, screw fastenings, steel sheeting fastening, fastening steel or screws.

Choose options

Corrosion protection
  • Zinc-plated
Thickness fastened range MF
  • 0.5 - 27 mm
  • 0.5 - 77 mm
Length
  • 52 mm
  • 102 mm
Pack size
  • 100 pc
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 0.255

Technical Data

Screw drive/recess type
Hexagon 8
Washer size
16 mm
Base materials
Carbon steel
Environmental conditions
Dry indoor
Screw diameter d
5.5 mm
Screw head diameter
10 mm
Product class
Premium
Washer type
Bonded EPDM

Documents

pdf Certificate of Conformity 0769-CPR-VAS-00681-3 for ETA-10/0182, English [ 223.4 KB ]

Features & Applications

Features

  • Self-drilling screw for fast assembly in one step
  • Perfectly sealed fastening points
  • EPDM rubber washer – creates a more reliable seal against water
  • Fast and robust drill tip with Racing Tip technology – a wave-form cutting edge which removes chips much faster and helps prevents point burn-out
  • For reliable fastenings with defined load values

Applications

  • Fastening sheet metal and profiles to steel substructures and framing, with or without intermediate insulation layers
  • Galvanised carbon steel for fastening in dry, indoor environments
  • Thick metal-to-metal connections (up to 15 mm)
  • For applications requiring watertight fastenings with 16 mm washer

For approval or certificate information, please see individual items.
