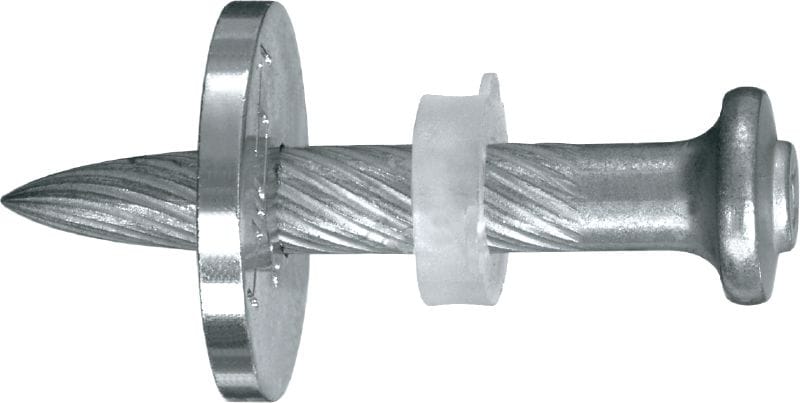

X-U P8 S steel/masonry nails with washer
High-performance single nail with steel washer for fastening to concrete and steel using powder-actuated tools
- Base materials: Concrete (soft), Concrete (tough), Steel
- Minimum thickness of base material (concrete): 80 mm
- Corrosion protection: Galvanised zinc coated <20 µm
premium
Customers also searched for concrete nails, nails for direct fasening, drywall track, nails or direct fastening.
Technical Data
Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Point type
Ballistic point, knurled
Approvals
ABS, COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 2, DX 351, DX 5, DX 6
Product class
Premium
Documents
Features & Applications
Features
- Galvanised nails for fastenings on concrete or steel
- Higher application limits, higher ultimate tensile loads
- With preassembled washer providing increased pull-over values
- Knurled point for better performance on high-strength steel and hard concrete
Applications
- Fastening on steel support frames S 355 (St 52) 6-12 mm
- Fastening steel sheets on steel support frames or substructures S 355 (St 52) 6-8 mm
- Fastening wood on S 355 (St 52) steel substructures with a thickness of 6 mm
- Fastening timber or steel brackets to steel or concrete where high pull-over strength is required
- Fastening wood to concrete (even high-strength concrete) or steel
For approval or certificate information, please see individual items.
