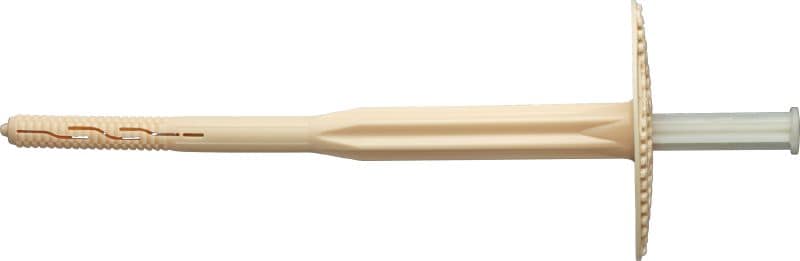

SDK-FV Insulation fastener
Economical impact insulation anchor with ETA approval for fastening to ETICS façades
- Base materials: Masonry (solid), Masonry (hollow), Concrete (tough), Concrete (aerated), Concrete (soft)

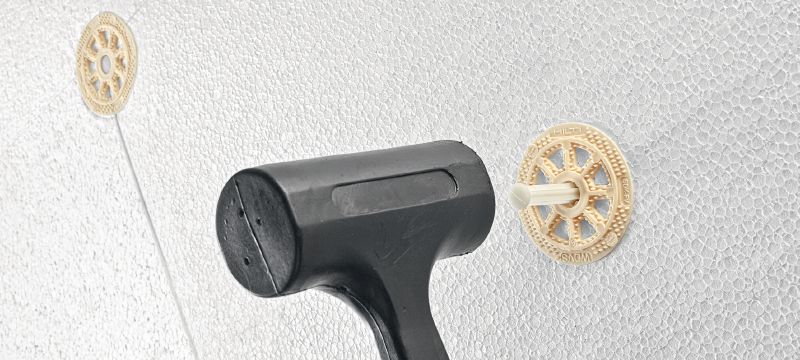

- Working principle: Impact anchor
- Insulation material: Mineral wool, Soft board (e.g. EPS), Mineral wool
Choose options
Insulation material thickness fastened - max.
- 60 mm
Drill bit diameter
- 8 mm
Anchor length
- 110 mm
Pack size
- 200 pc
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Base materials
Masonry (solid), Masonry (hollow), Concrete (tough), Concrete (aerated), Concrete (soft)
Working principle
Impact anchor
Insulation material
Mineral wool, Soft board (e.g. EPS), Mineral wool
Approvals / test reports
ETA
Environmental conditions
Outdoor (more than 1km to coast)
Type of fastening
Through-fastening
Material composition
Plastic, Polyamide
Material, corrosion
Plastic
Features & Applications
Features
- Employs the well-proven impact anchor principle, unaffected by drilling dust
- Special star-shaped shank for maximum installation reliability
- Setting depth of 40 mm compensates for variations in surface thickness typically encountered on this type of wall
- The stepped drill bit ensures that the expansion zone is located within the loadbearing area even on walls with very thick rendering
- Installation flush with the surface of the insulation material makes surface filling unnecessary
Applications
- Fastening insulation materials with a thickness of 20 – 200 mm on concrete and solid or hollow brick.
For approval or certificate information, please see individual items.
