HRD-HF Plastic frame anchor

High-performance plastic anchor for frames (hot-dip galvanised, hex head)

Base materials: Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)
Head configuration: Hex head
Approvals / test reports: ETA, Fire

Anchor size

Anchor length

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From OMR 0.881

Base materials

Concrete (aerated), Concrete (cracked), Concrete (hollow core), Concrete (uncracked), Masonry (grout-filled CMU), Masonry (hollow), Masonry (solid)

Head configuration

Hex head

Approvals / test reports

ETA, Fire

Material, corrosion

Carbon steel, HDG (hot-dip galvanised)/sherardised

Environmental conditions

Dry indoor, Indoor with temporary condensation

Type of fastening

Through-fastening

Flexible embedment depth (approved at 50 mm and 70 mm embedment depth) - the ideal anchor for a huge range of applications in virtually all base materials
Suitable for fastening thicknesses up to 150 mm (anchor lengths from 60 mm to 200 mm)
Available in 4 different materials for optimum suitability in all corrosive environments
Pre-assembled for optimum handling and fastening quality

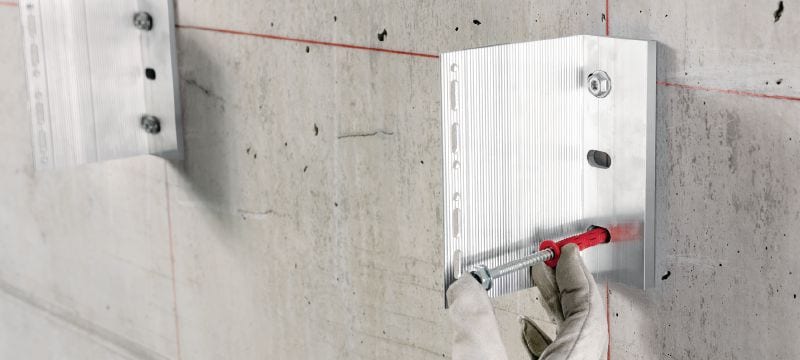

Fastening metal substructures for ventilated facades
Typical applications for metal fabricators such as fastening handrails, window bars, railings, balustrades, etc.

For approval or certificate information, please see individual items.
