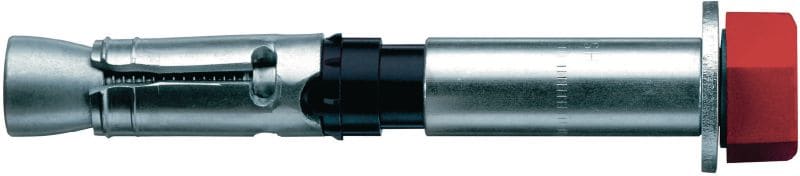

HSL-3-B Heavy-duty wedge anchor

Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel)

Material, corrosion: Carbon steel, zinc-plated
Head configuration: Safety cap (Torque limitation nut)
Approvals / test reports: ETA, Fire, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Customers also searched for expansion anchor, heavy-duty anchor, anchors for dynamic loads, anchors or anchoring.

Anchor size

Anchor length

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From OMR 17.140

Technical Data

Material, corrosion

Carbon steel, zinc-plated

Head configuration

Safety cap (Torque limitation nut)

Approvals / test reports

ETA, Fire, ICC-ES report (concrete), Nuclear (NQA-1), Seismic

Base materials

Concrete (cracked), Concrete (uncracked)

Type of fastening

Through-fastening

PROFIS software

Yes

High tensile and shear load capacity
Force-controlled expansion which allows follow-up expansion

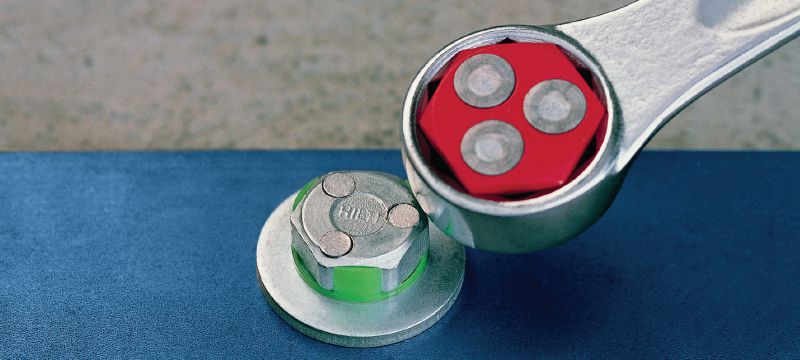

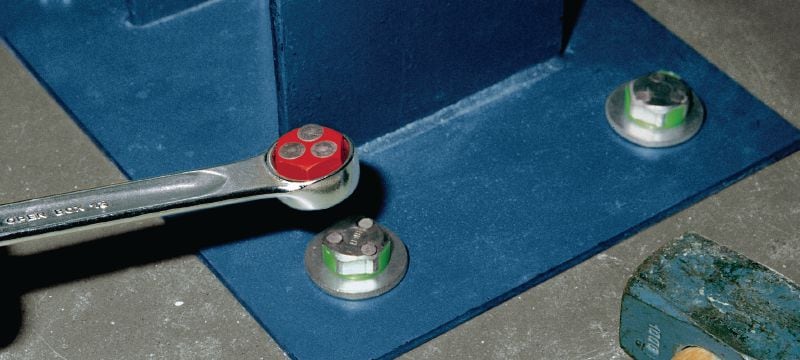

Special safety cap ensures that the correct installation torque is always applied even without using a torque wrench
ETA Option 1 for cracked and uncracked concrete
ICC-ES/AC 193 for cracked and uncracked concrete and seismic

Heavy-duty fastenings in highly safety-relevant or dynamic applications, including applications in nuclear power plants

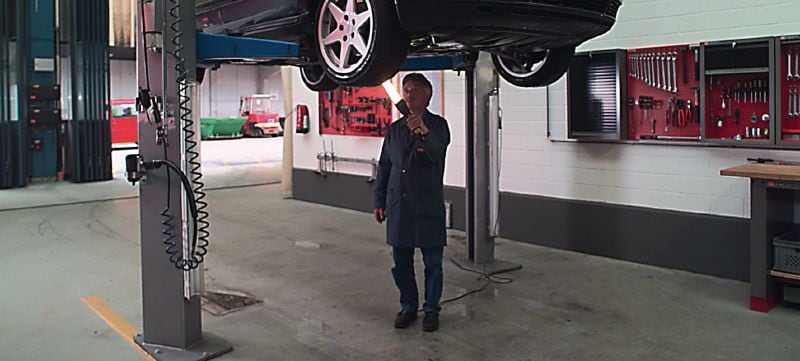

Applications where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.

For approval or certificate information, please see individual items.
