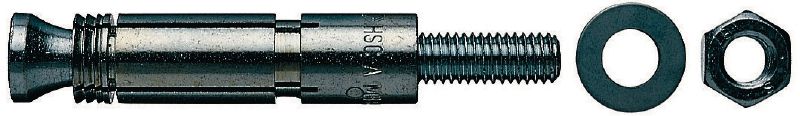

HSC-A Shallow undercut anchor
Ultimate-performance shallow undercut anchor (carbon steel, external threaded)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, Seismic
Customers also searched for undercut anchor, anchoring pipes, externally threaded anchor, anchoring car park barriers or anchoring.
Choose options
Anchor size
- M10
- M12
Standard embedment depth
- 40 mm
- 60 mm
Max. fixture thickness at standard embedment depth
- 20 mm
Pack size
- 20 pc
- 25 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 3.882
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
PROFIS software
Yes
Type of fastening
Pre-fastening
Documents
Features & Applications
Features
- Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
- Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
- Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed

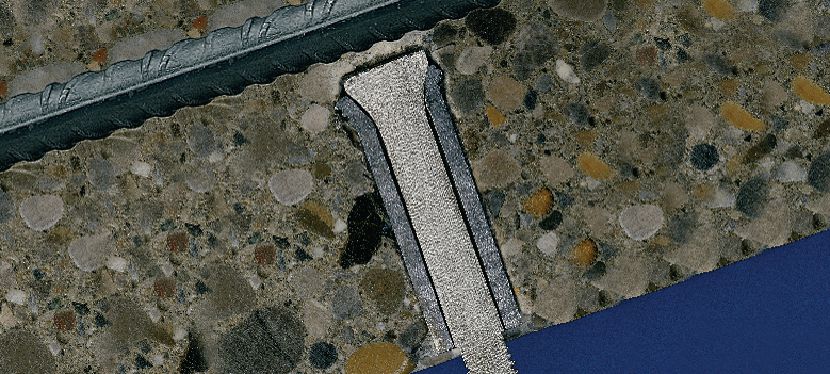

- The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
- Requires a plain cylindrical drilled hole, no separate undercutting operation
Applications
- Safety-relevant, medium-duty fastenings in cracked or uncracked concrete, especially where shallow embedment and/or small edge distance or close spacing is required

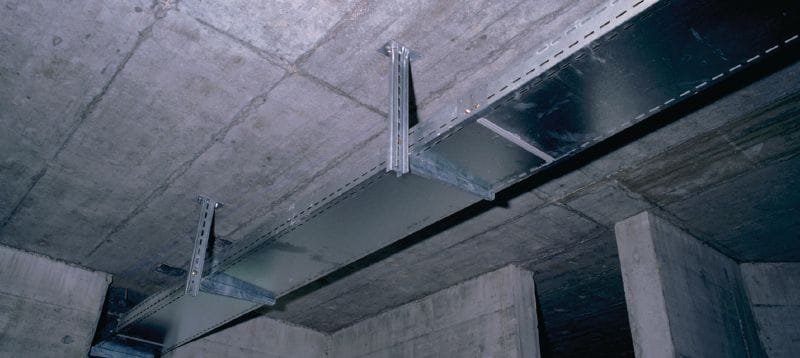

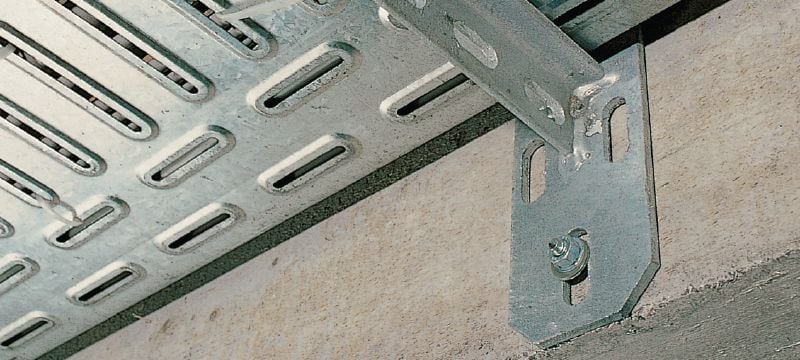

- Examples: stair hand rails, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.
For approval or certificate information, please see individual items.
