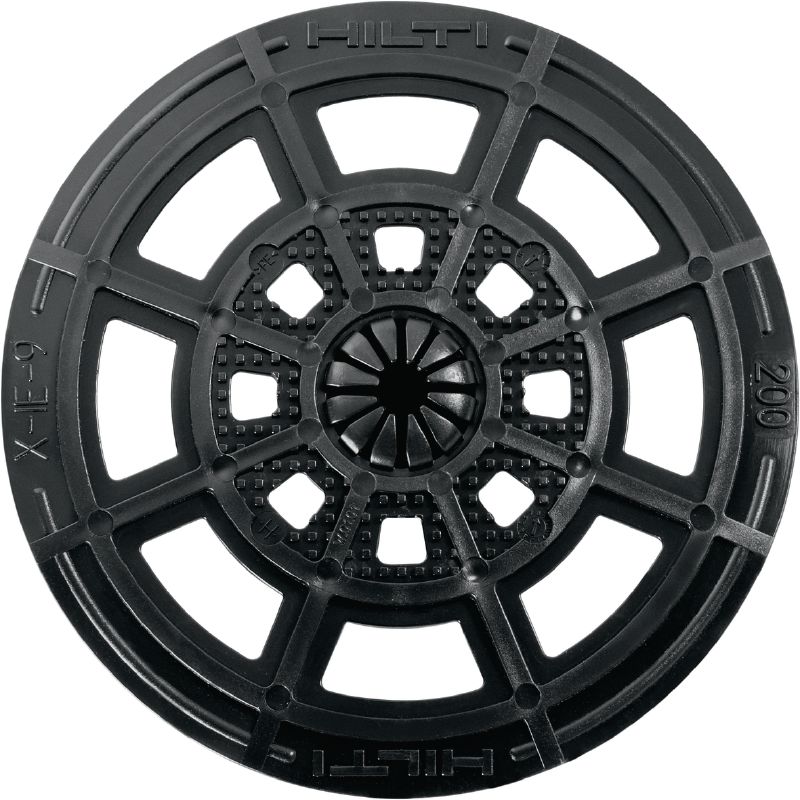

X-IE 9 Insulation fastener

Configurator
Technical Data
Documents
Features & Applications
Related Products
L056658.tif
L054657 (141011)
L064225.tiff

Insulation fasteners for fixing soft mineral wool on soft to tough concrete, masonry and steel

  • Application: Mineral Wool Insulation
  • Insulation material: Mineral wool
  • Base materials: Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
ultimate

Choose options

Insulation thickness
  • 120 mm
  • 140 mm
Pack size
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From OMR 0.949

Technical Data

Application
Mineral Wool Insulation
Insulation material
Mineral wool
Base materials
Concrete (soft), Concrete (tough), Concrete (uncracked), Steel, Masonry (solid limestone brick)
Approvals
ITB
For use with (tools)
DX-IE
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
4 mm
Material
High-density polyethylene (HDPE), Halogen-free, Silicone-free
Colour
Black
Product class
Ultimate

Documents

Technical information
Test Report
pdf X-IE Data Sheet, English, German, Spanish, French [ 10.6 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Extremely quick insulation fastening system – up to five times faster than conventional methods
  • Specially-designed 90 mm disc diameter for soft mineral wool, providing excellent clamping of the insulation
  • Suitable for 40-200 mm thick insulation
  • Ultimate-performance, high-hardness nail – provides better drivability into concrete with best-in-class stick rates and holding values
  • Excellent thermal efficiency in a one-step solution – no cap is required

Applications

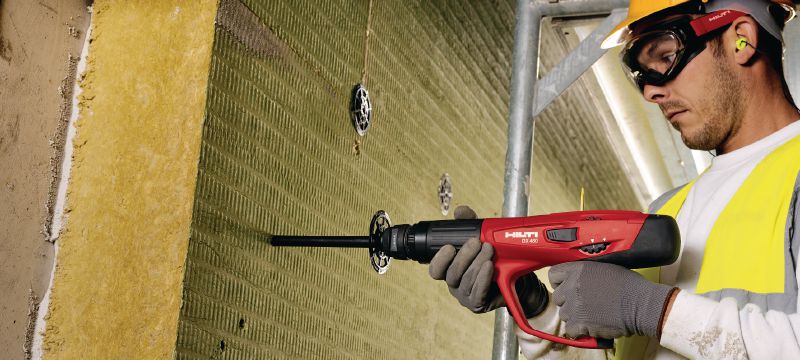

  • Fastening soft mineral wool on soft and tough concrete, masonry and steel
  • Ceiling insulation
  • Light ventilated façade insulation
  • Basement perimeter wall insulation
  • Not suitable for rigid or multilayer insulation boards such as XPS, PUR and PIR foams

For approval or certificate information, please see individual items.
