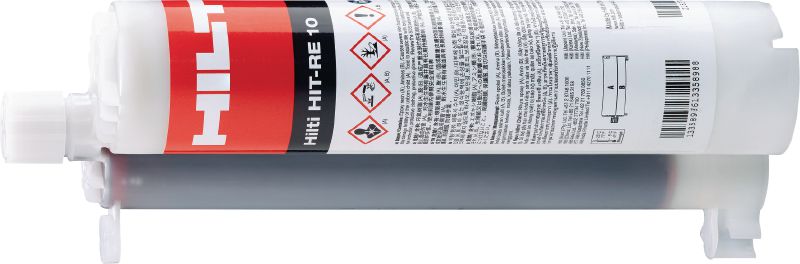

HIT-RE 10 Epoxy anchor
Economical injectable epoxy mortar for anchoring in concrete
- Base materials: Concrete (non-cracked)
- Base material condition: Dry, Wet
- Seismic loading: No
Choose options
Content per can/cartridge
- 0.58 l
Pack size
- 12 pc
Quantity
Packs
Total Pieces
1
Discounted net
From OMR 9.493
Technical Data
Base materials
Concrete (non-cracked)
Base material condition
Dry, Wet
Seismic loading
No
Fatigue loading
No
Fire resistance
No
PROFIS software
No
Anchoring elements
HAS-U threaded rods, Rebar
Environmental conditions
Dry indoor, Highly corrosive special applications (e.g. tunnels, swimming pools), Indoor with temporary condensation, Outdoor (more than 1km to coast)
Cleaning procedures
Compressed-air cleaning, Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 55 °C
Free of styrene
Yes
Documents
Features & Applications
Features
- The economical injection mortar solution that can replace virtually all grout fastenings
- Suitable for post-installed rebar and concrete anchoring applications in accordance with Hilti technical data
- Compatible with Hilti’s full range of accessories (e.g. cordless electric dispenser, steel brushes, piston plug)
- Available in 580 ml hard cartridge, suitable for use under severe on-site conditions
- Allows flexible installation due to the long working time
Applications
- Substitution of misplaced/missing rebar
- Connection of secondary post-installed rebar (e.g. staircases, upstands)
- Renovation/upgrading of post-installed rebar
- Rebar dowelling
- Anchoring non-structural secondary steel elements (e.g. columns, beams)
For approval or certificate information, please see individual items.
