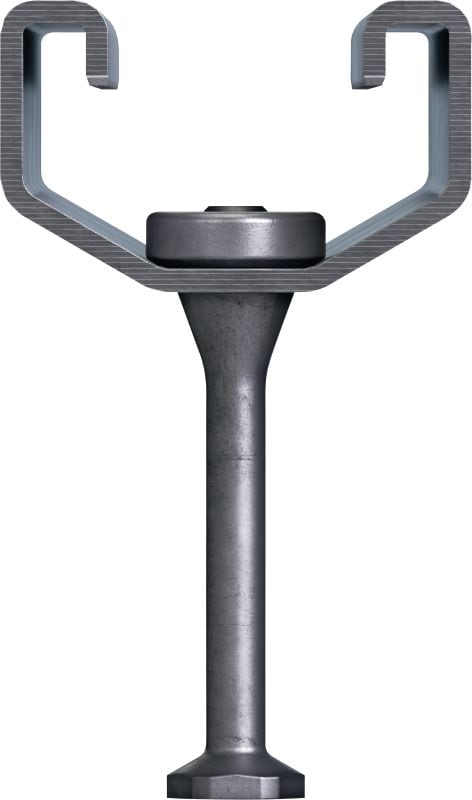

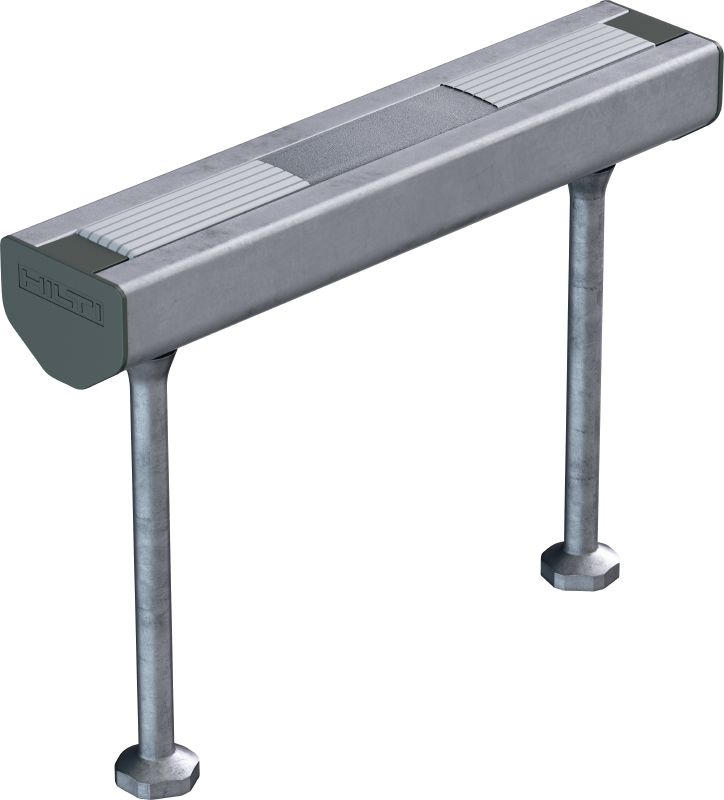

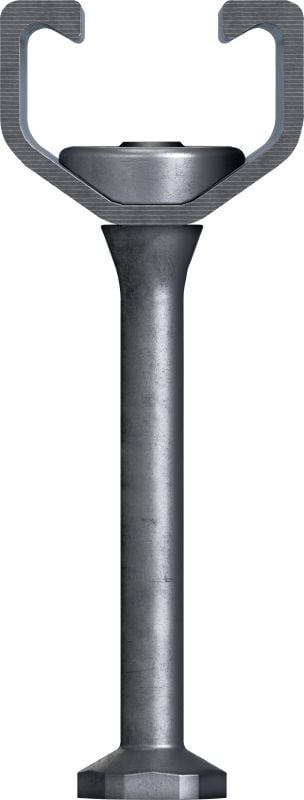

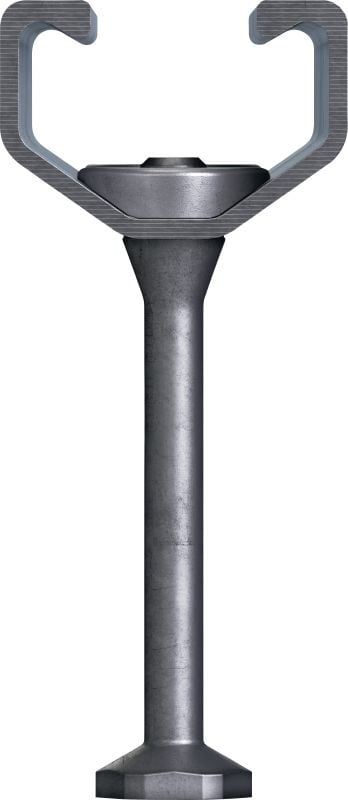

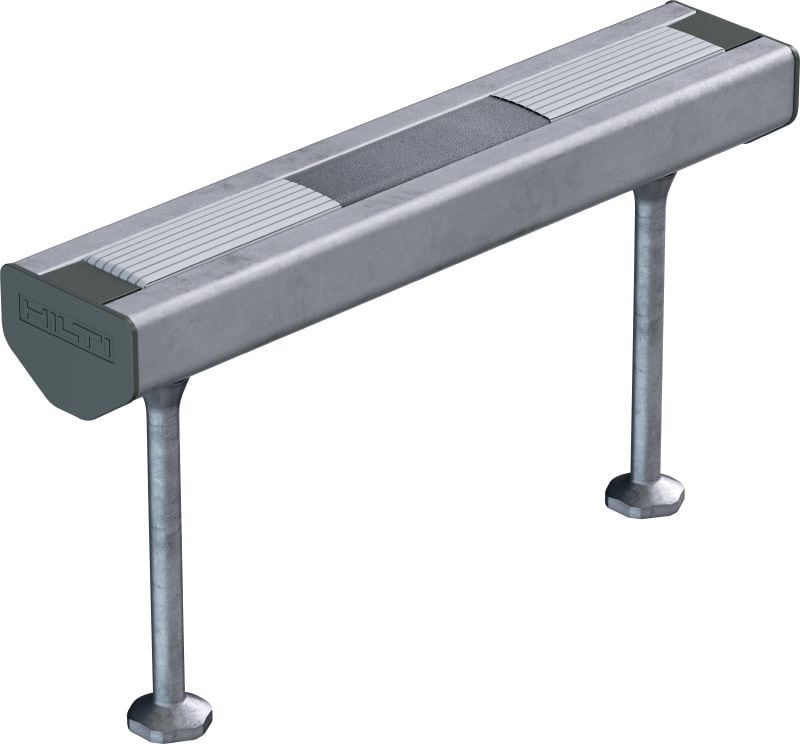

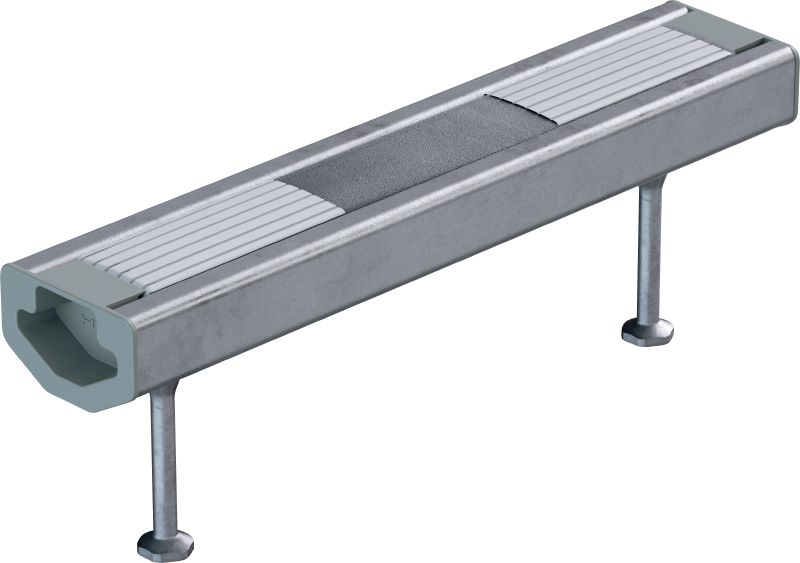

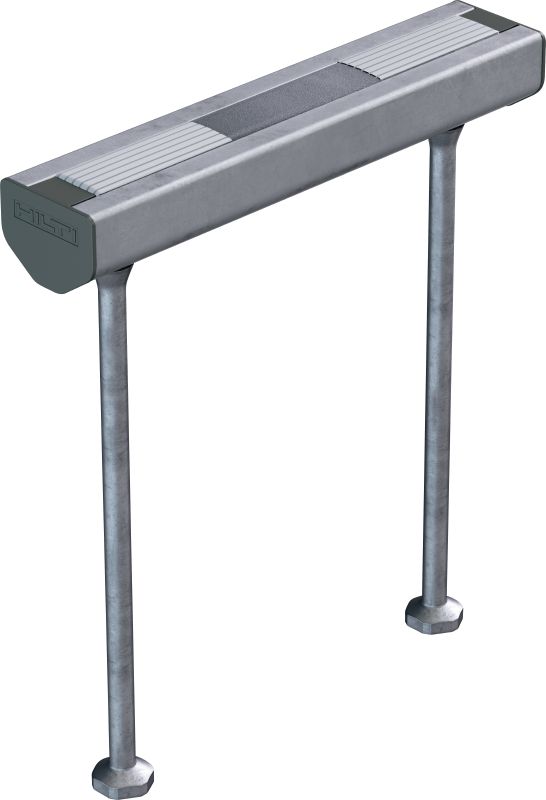

Standard HAC-V Anchor channel
A.-Channel HAC-V 35 91/300 F #2331485
Cast-in anchor channels with upgraded load capacity and multiple embedment depths for economical fastening of curtain wall façades
- Material, corrosion: Carbon Steel, Hot-Dip Galvanised
- Channel profile: HAC-V 35
- Length: 300 mm
Choose options
Material, corrosion
- Carbon Steel, Hot-Dip Galvanised
Channel profile
- HAC-V 35
Length
- 300 mm
Pack size
- 1 pc
Quantity
Packs
Total Pieces
1
Discounted net
OMR 36.060
OMR 36.060
/
1 each
Technical Data
Material, corrosion
Carbon Steel, Hot-Dip Galvanised
Channel profile
HAC-V 35
Length
300 mm
Standard embedment depth
91 mm
PROFIS software
Yes
Features & Applications
Features
- Upgraded performance – tension resistance up to 20% higher than previous HAC anchor channels
- More economical – higher load capacity and multiple embedment depth options so you can use smaller cast-in channels as needed
- Engineering support available – use PROFIS Anchor Channel software to streamline the design process, or contact your local Hilti team for project-specific advice
- Faster, safer, easier – automate setting T bolts by using the Hilti Adaptive Torque system, helping you improve consistency and save time when setting hundreds of bolts
- ETA and ICC-ES approval documents for static, fatigue, seismic (ICC-ESR 3520) and fire loading available
Applications

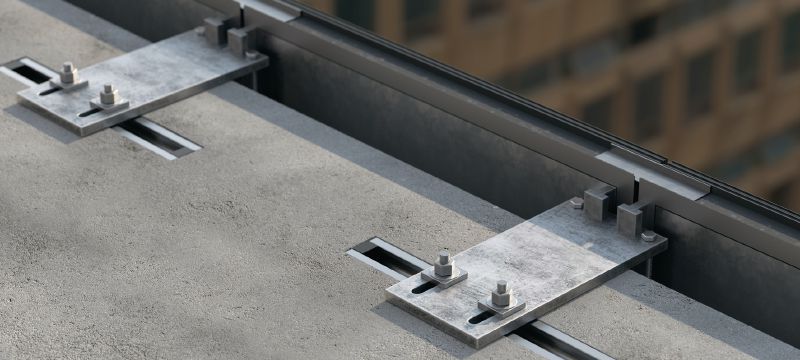

- Fastening curtain wall façades in concrete slabs

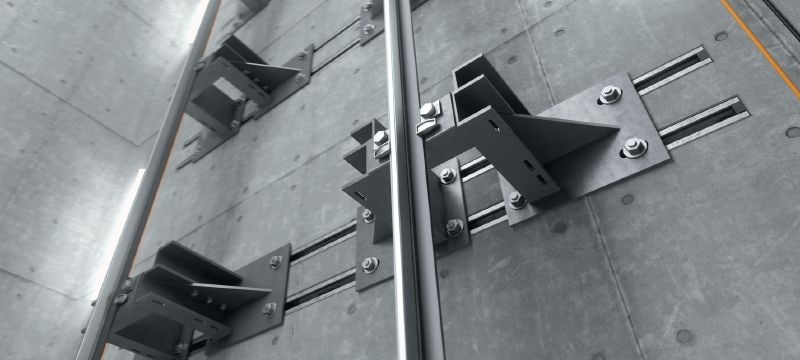

- Fastening in lift shafts, such as fixing guiderails, sliding doors or divider beams

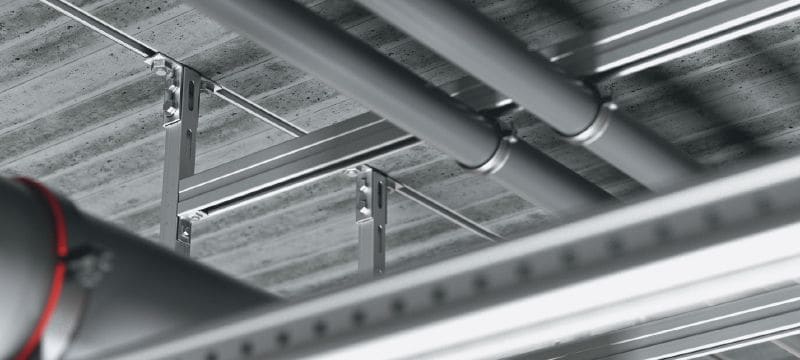

- Fastening overhead MEP installations and equipment
- Fastening building appliances (e.g. ventilation, heating)
