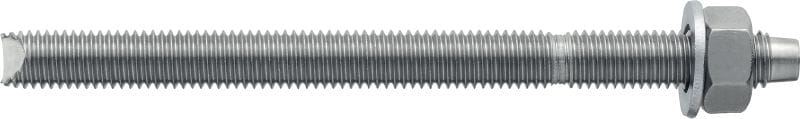

HAS-E-HCR Anchor rod

High-performance anchor rod for adhesive capsules (high corrosion resistance)

Material, corrosion: Stainless steel, HCR (high corrosion resistance)
Environmental conditions: Highly corrosive special applications (e.g. tunnels, swimming pools), Underwater, salty water
Base materials: Concrete (cracked), Concrete (non-cracked)

Customers also searched for anchor rods, anchoring, anchoring rods, standard anchor rod or anchor rod setting.

Technical Data

Material, corrosion

Stainless steel, HCR (high corrosion resistance)

Environmental conditions

Highly corrosive special applications (e.g. tunnels, swimming pools), Underwater, salty water

Base materials

Concrete (cracked), Concrete (non-cracked)

PROFIS software

Yes

Approvals / test reports

ETA

Type of fastening

Pre-fastening

Large range of anchor rod sizes (M8-M24)
Designed for use with Hilti HVU capsules in solid concrete
Optimised design
Features a chisel tip to cut and mix the HVU capsule, embedment marking for easy setting and a conical head (M8-M24 only) to be used with separate setting tool
Short spacing and edge distances

Suitable for fastenings in concrete in combination with HVU capsules
Suitable for fastenings in masonry in conjunction with HIT-HY 70, HIT MM, and HFX (M6-M12)

For approval or certificate information, please see individual items.
